Demonstrating both energy conservation and comfortable environments through feed-forward AI air-conditioning control based on small-volume learning

We have made comfort prediction possible even with short-term data and demonstrated its effectiveness in the actual environment of the JR Shinjuku Miraina Tower

Nippon Telegraph and Telephone Corporation (NTT), East Japan Railway Company (JR East), NTT FACILITIES, Inc. (NTT FACILITIES), and NTT DATA Corporation (NTT DATA) jointly demonstrated the optimal air-conditioning control scenario calculation technology developed by NTT in the office lobby of JR Shinjuku Miraina Tower. As a result, we were able to reduce energy consumption by approximately 50% while maintaining a high level of comfort in the office lobby during the summer. This achivement is expected to contribute significantly to achieving carbon neutrality, which is the goal of both the NTT Group and JR East Group, on the basis of NTT's environmental energy visions, "NTT Green Innovation toward 2040"*1, and the long-term environmental goals of the JR East Group, "Zero Carbon Challenge 2050."*2

1. Background

Until now, air-conditioning control for common areas such as corridors, lobbies, and lounges in large-scale commercial and office buildings has been based on signals from sensors (feedback control) or the experience of building managers. However, with the growing momentum toward carbon-neutrality, it is difficult to take into account the time delay until air-conditioning control affects the indoor environment with the conventional technology. To take into account the time delay, data such as temperature, humidity, and human flow must be measured and analyzed over a long period of time, making it difficult to achieve a comfortable environment for visitors and tenants while reducing energy consumption in an actual building.
 Therefore, the NTT Group, which aims to achieve carbon neutrality by fiscal 2040, and the JR East Group, which owns a large number of buildings and is working to achieve ESG (environment, society, governance) management and improve the attractiveness of its buildings, have jointly conducted demonstration experiments aimed at both improving the attractiveness of buildings and optimizing energy consumption. In particular, we have worked together to optimize the operation of air conditioners, which account for approximately 50% of the energy consumption of buildings and strongly affect the comfort of visitors and tenants.

2. Outline and Results of Demonstration Experiments

In this experiment, we applied the optimal air-conditioning control scenario calculation technology developed by NTT to the air-conditioning operation of the office lobby in the JR Shinjuku Miraina Tower in summer. This technology was developed at the NTT Smart Data Science Center as part of the "Urban DTC"*3 initiative to create new value in cities by reproducing the state of people, goods, and the environment and predicting the future. This technology uses the "4D digital platform™"*4, which is a geospatial location information database that includes mobile objects. The roles of each company in this experiment are listed in Table 1, and the outline of the developed technology is shown in Figure 1.

This technology calculates the optimal air-conditioning control scenario on the basis of the following processing. In particular, the combination of computional fluid dynamics and machine learning enables comfort to be predicted from small amounts of data measured in a short period of time, and the use of deep reinforcement learning*5 enables feed-forward control that takes into account the time delay before air-conditioning affects the indoor environment in large common spaces in buildings.

  • Prediction of PMV*6, a comfort index, from a small amount of measured data by combining machine learning technology and computational fluid dynamics using the number of visitors, outside air temperature, air-conditioning operation status, and indoor temperature and humidity.
  • The optimal air-conditioning control scenario for the target day is calculated by using deep reinforcement learning, which optimizes the process of calculating the optimal air-conditioning operation settings on the basis of the predicted PMV by repeating the process for one day.

By applying the air-conditioning operation scenario calculated above, it was found that the amount of energy consumed by the air conditioner (chilled water heat) could be reduced by approximately 50 percent compared with the conventional air-conditioning operation on the same climate day, while the PMV stayed within a comfortable range. This is an important result demonstrating that the optimal air-conditioning control scenario calculation technology using deep reinforcement learning is useful for optimizing air-conditioning in actual buildings.

These results will be exhibited at the NTT R&D Forum*7 to be held from November 16.

Table 1: Division of roles of each company in this experiment

company Role
NTT Develop the optimal air-conditioning control scenario calculation technology
JR East Provide information on issues and needs in the verification environment and building operations
NTT FACILITIES Provide building operation technology and know-how
NTT DATA Provide development environment and consideration of practical application on the basis of the results

Figure 1: Overview of NTT's technology for calculating optimal air-conditioning control scenarios Figure 1: Overview of NTT's technology for calculating optimal air-conditioning control scenarios

3. Features of the Results

  • Air-conditioning is optimized by feed-forward control taking into account the time delay until the optimum environment is controlled by air-conditioning. This is achieved by optimal air-conditioning control scenario calculation technology based on deep reinforcement learning that combines the prediction of the number of visitors, outside temperature, and amenity (PMV) from air-conditioning operation and the calculation of air-conditioning operation scenarios that take comfort and energy consumption into consideration.
  • The combination of computational fluid dynamics and machine learning enables indoor comfort to be accurately predicted using as little as three days of measurement data, instead of the more than two months of measurement data required in the past, enabling rapid implementation in actual buildings.
  • As a result of actual application of this technology in the office lobby of JR Shinjuku Miraina Tower, it was demonstrated that the amount of energy consumed can be reduced by approximately 50% compared with conventional controls while maintaining comfort (Figures 2 and 3).

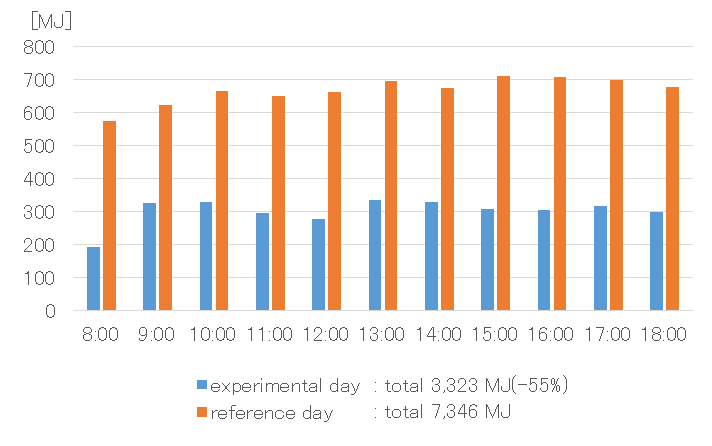

Figure 2: Energy Consumption of Air Conditioners (Chilled Water Heat) on Experimental and Reference Days Figure 2: Energy Consumption of Air Conditioners (Chilled Water Heat) on Experimental and Reference Days

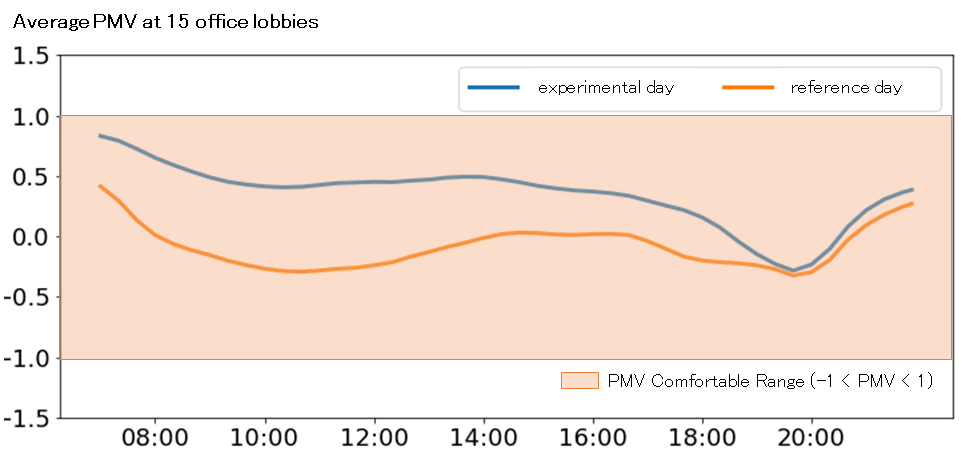

Figure 3: Change in mean PMV between the experimental and reference days Figure 3: Change in mean PMV between the experimental and reference days

4. Future development

Going forward, the NTT Group and the JR East Group will jointly promote the expansion of these results to improve the attractiveness of buildings and reduce energy consumption. At the same time, NTT DATA and NTT FACILITIES will study the practical application of this service. In addition, the NTT Group and the JR East Group will take steps to achieve carbon neutrality, contributing to the Japanese government's goal of reducing greenhouse gas emissions by 46% by 2030 compared with fiscal 2013, as well as to satisfy the 2050 Carbon Neutrality Declaration.
